- DIP switch is made of high-quality plastic and metal, using high-temperature engineering plastic UL94-0 material and film, with insulation, no stickiness, and strong impact resistance.
- Gold-plated copper, good conductivity, strong corrosion resistance, precision production, stable performance, quality assurance.
- DIP switch are designed to be used on printed circuit boards along with other electronic components, and are often used to customize the behavior of electronic devices for specific situations, ideal for products that require manual automatic programming.

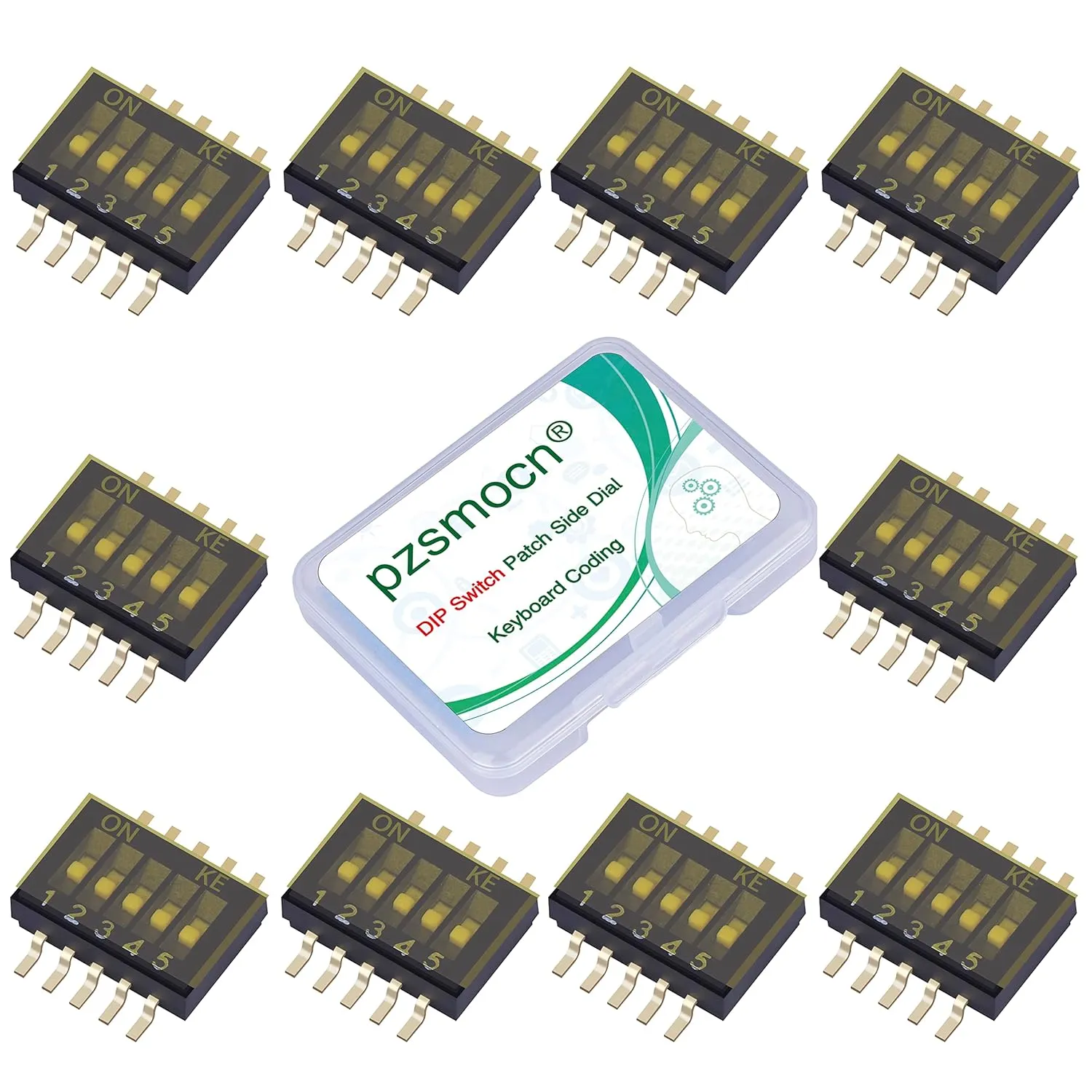

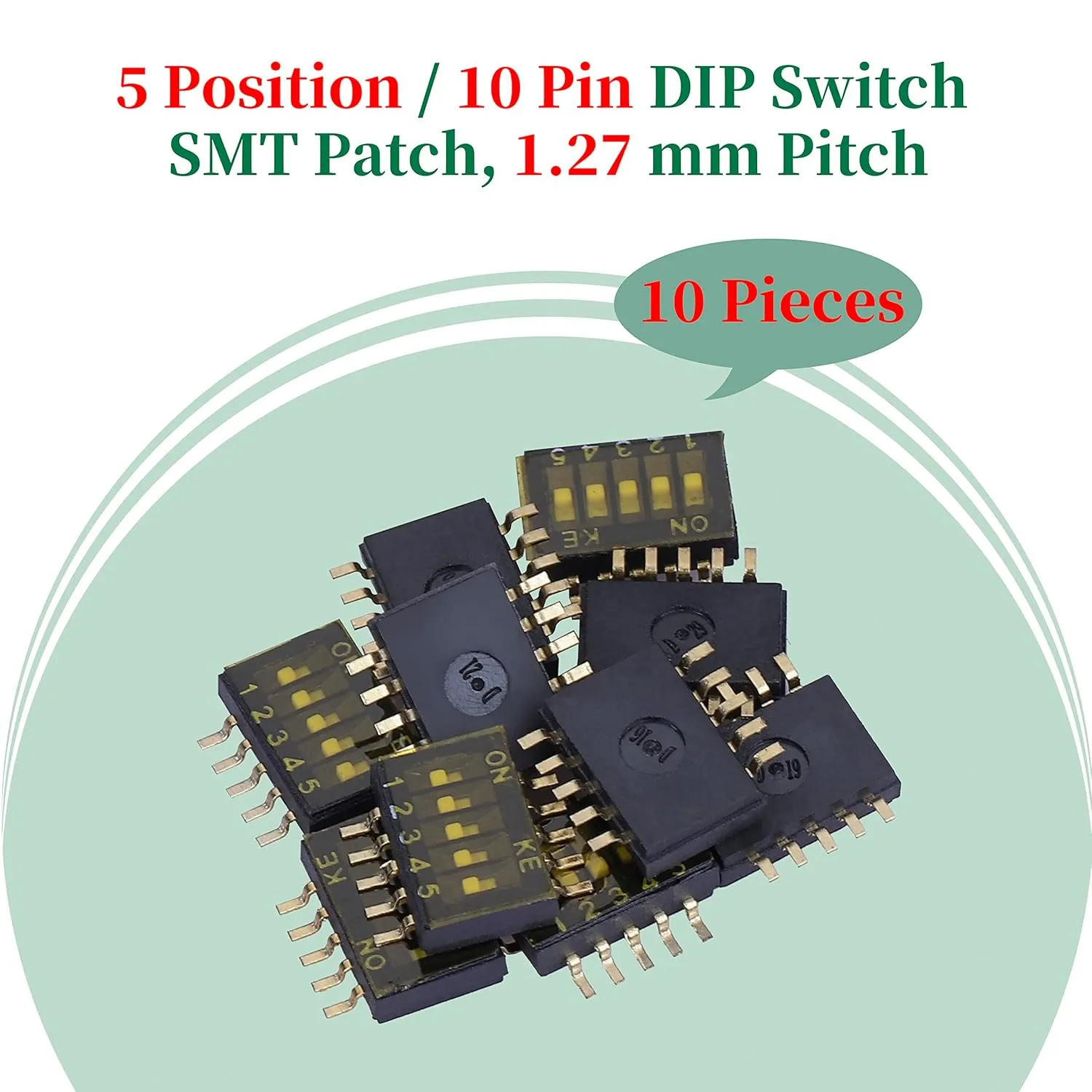

- 10 Pieces 5 Position / 10 Pin Dual Row DIP Switch Black Gold Plated Switch Patch Side Dial Keypad Coded 1.27mm Pitch.
- Packed in a PP material storage box, with a built-in foam pad, dust-proof and anti-collision, it can not only help you organize quickly, but also carry this small accessory with you.

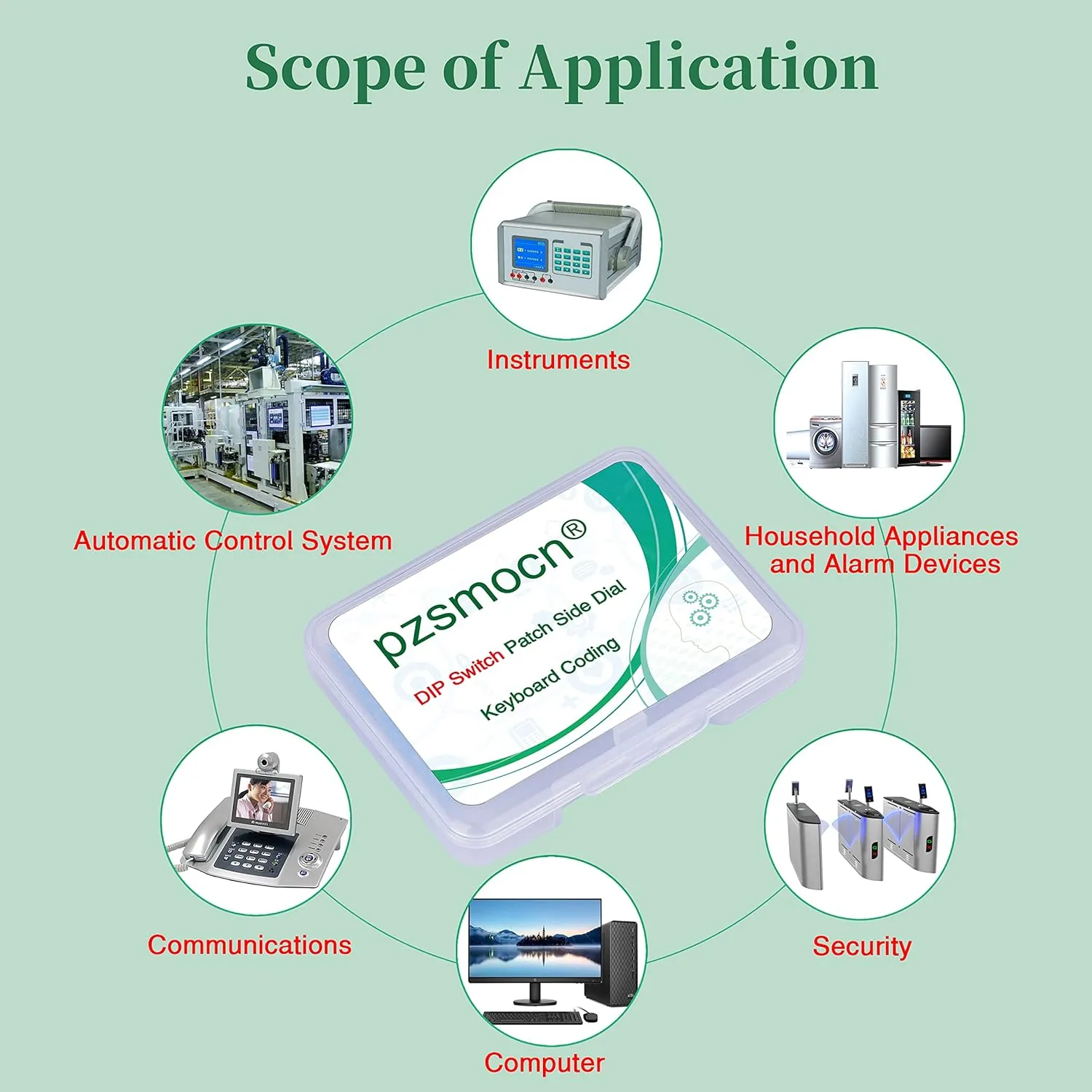

The DIP switch is an address switch used for operation control. It adopts the binary coding principle of 0/1. The pitch is 1.27 mm, the volume is small, and it occupies less space on the circuit board, which is suitable for use in micro and precise equipment. It is widely used in data processing, communication, remote control, anti-theft automatic alarm system, air shower, air conditioning control panel, train model and other products that require manual programming.
SPECIFICATION
Name: 5 Position / 10 Pin DIP switch
Type: SMT Patch
Pitch: 1.27 mm / 0.05 inch
Rated Current: Switching Current 25 mA 24V DC, Non-Switching Current 100 mA 50V DC
Contact Resistance: 50 Milliohms at Initial Value, 100 Milliohms After Life Test
Insulation Resistance: 500 Megohms / 500V DC
Withstand Voltage: 500V DC
Base Material: PPS UL94V-0
Cover Material: PPS UL94V-0
Push Button Material (Actuator): Nylon UL94V-0
Pin Material: Gold Plated Copper
Attachment Film: Polyimide Film
WELDING METHOD
Hand Soldering: no more than three seconds below 350 degrees Celsius or no more than 5 seconds below 270 degrees Celsius (under 30 watts).
Reflow Soldering: 265°C to 275°C within 10 seconds, please set the push button to the (OFF) position during soldering and cleaning.
PACKING LIST
10 Pieces 5 Position / 10 Pin 1.27 mm DIP Switch Patch Side Dial Keyboard Coding * 1
- Product Dimensions : 2.68 x 2.09 x 0.47 inches; 0.35 ounces
- Date First Available : September 29, 2022
- Manufacturer : pzsmocn
- Country of Origin : China
