- 【High Quality Material】High quality aluminium alloy material, high hardness, corrosion-resistant, rust-resistant, not easy to bend, can be used for a long time: with strong aluminium alloy material and powerful engine, the outboard has a maximum load capacity of 2,204 pounds to meet different needs. (The heavier the load, the slower the speed.)

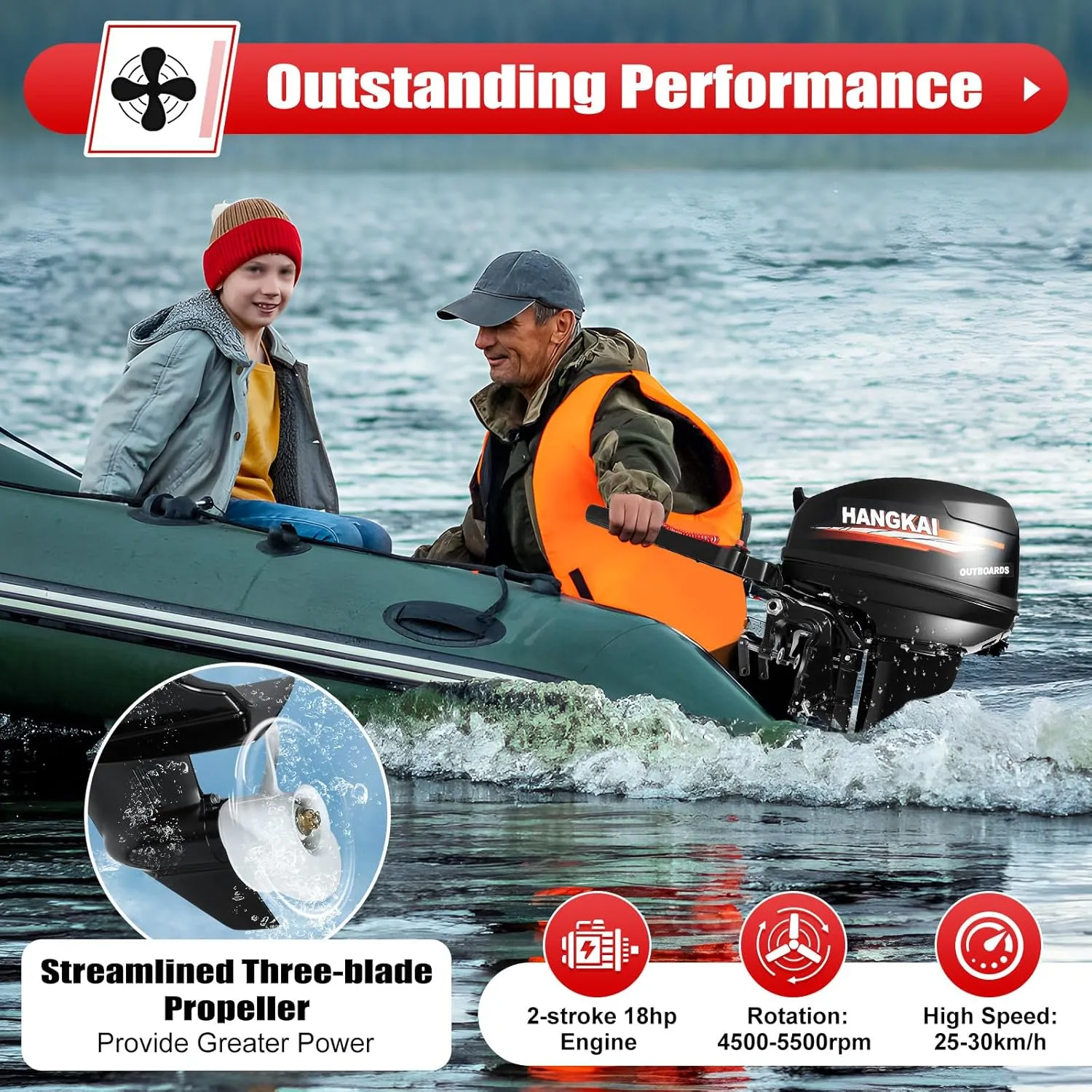

- 【Strong Power】2-stroke 18hp engine (4500-5500rpm) provides strong power, allowing you to drive fast and save a lot of time and energy: stepless variable speed and constant speed cruise function allow you to easily adjust the driving speed, even and stable sailing, bringing you a more comfortable using experience. Three-blade propeller: Three-blade propeller, streamlined design, more powerful.

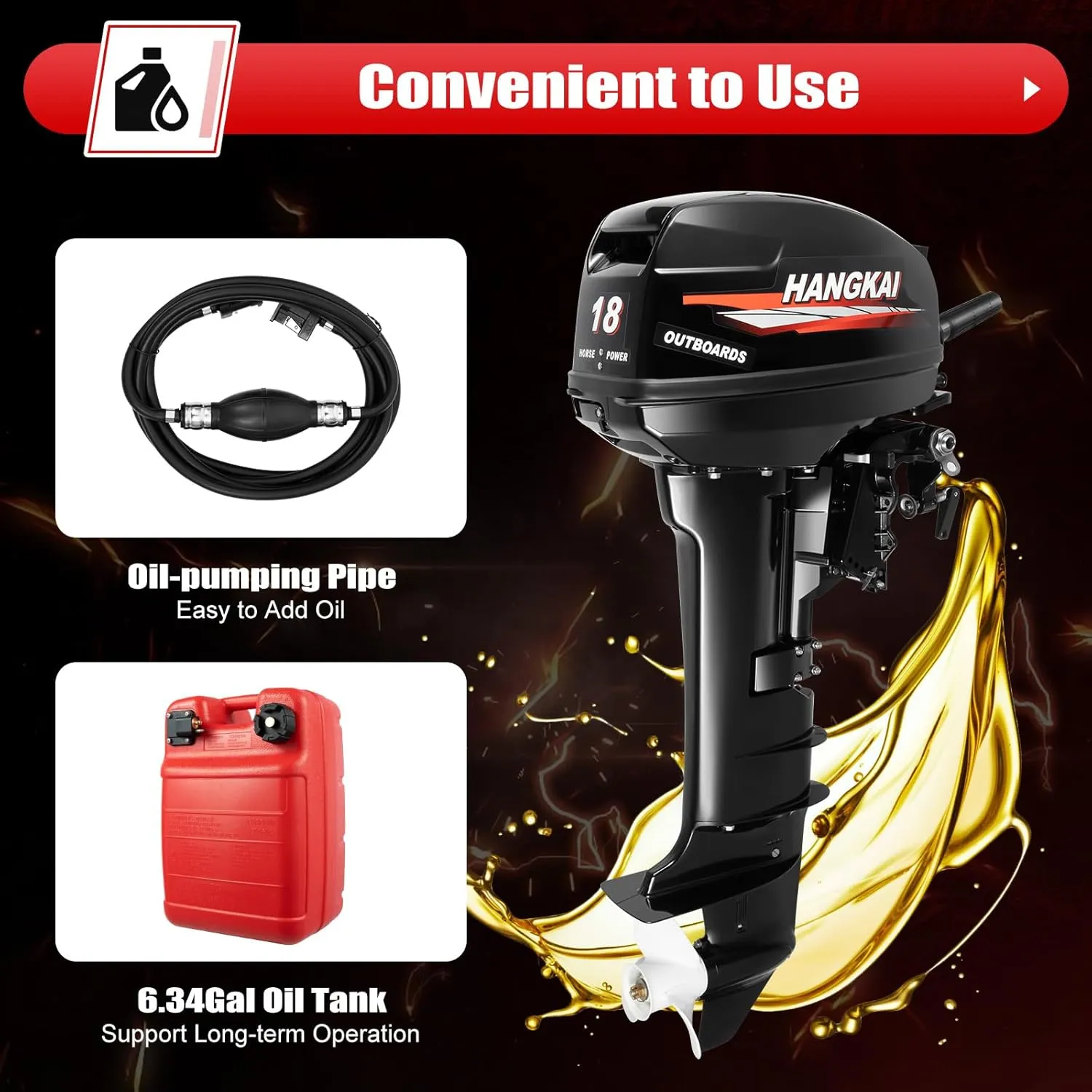

- 【Excellent Durability】Low fuel consumption, high efficiency two-stroke motor, large capacity fuel tank (6.34 gallons), providing you with long range to meet the needs of short/long distance travelling: Good heat dissipation: Multiple cooling holes and water-cooling system, good heat dissipation, preventing the engine from burning out after long time use. Anti-swirl plate: Anti-swirl plate can effectively reduce the turbulence of waves and avoid water from wetting your clothes.
- 【Easy Operation】Manual start function, just pull the start rope and turn on the speed switch on the handle, it can be easily operated. Long non-slip handle (20 inches long) is easy to grip. The red stop button allows you to stop the engine in seconds by pressing: Forward, Neutral and Reverse gears, 360 degree steering function gives you the flexibility to control the direction of the boat.
- 【Quieter Working】The sound dampening cover provides a quieter working environment by absorbing the noise generated by the fan with internal sound-absorbing material. The outboard is suitable for small boats made of different materials (less than 4.9 feet in width and 19.7 inches in length), such as inflatable boats, iron boats, plastic boats, fibreglass boats, wooden boats and so on. It is widely used in fishery, aquaculture, outdoor adventure and so on.
- 【Gear Oil Filling Method】There is a screw on the gearbox, unscrew the screw to add gear oil. Each machine will be filled with gear oil before leaving the factory, so it does not need to be refilled when it is used for the first time. After that, add according to personal use, and check every ten hours.
- 【Note】The two-stroke outboard must use a mixture of No. 92 gasoline and two-stroke engine oil.The volume ratio of gasoline and oil during the running-in period of the new machine is 25:1.After the running-in period, the volume ratio of gasoline and oil is 50:1.Special attention: gasoline and engine oil must be pre-mixed and stirred evenly, and then poured into the fuel tank.
Description
With a huge thrust, a sturdy and powerful propeller, and precise speed control, the outboard engine is a good helper for your water work. Its two-stroke motor, flexible steering, easy operation let you sneak up on fish, outdoor adventure, etc. with the best speed and low noise.

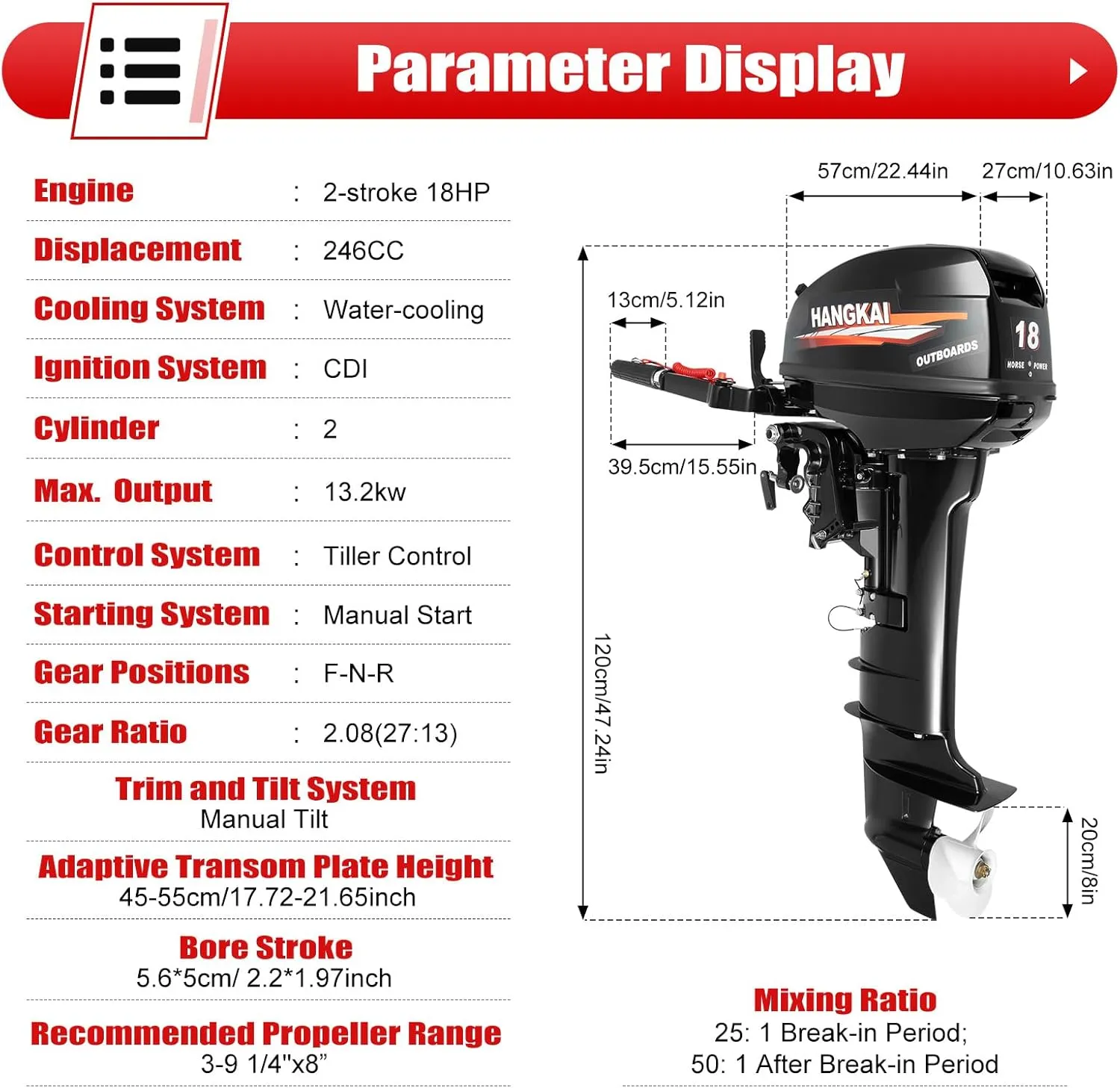

Specification
Material: Aluminum Alloy
Color: Black
Model: 18HP Horsepower Long Axis
Displacement: 246CC
Gear Ratio: 2.08 (27:13)
Number of Cylinders: 2
Speed: 4500-5500RPM
Gear: F-N-R
Refueling Method: 92 Unleaded Gasoline is Recommended
Oil Tank Capacity: 24L/6.34gal
Load-bearing Capacity: 500-1000kg/1102-2204lbs
Ignition System: CDI
Cooling System: Water Cooling
Control System: Tiller Control
Start System: Manual Start
Propeller Specification: 23.5cm/9.25in (Length) * 20.3cm/8in (Diameter)
Suitable Stern Plate Height: 45cm-55cm/17.7*21.7in
Cylinder Diameter * Stroke: 56mm/2.2in*50mm/2in
Recommended Engine Oil: 2 Stroke Engine Oil
Mixing Ratio: Fuel: Oil = 50:1
Trim and Tilt System: Manual Tilt
Net Weight: 28kg/61.7lbs
Gross Weight: 30kg/66.1lbs
Package Size: 133*71*38.5cm/52.4*28*15.2in
Product Size: 87.3*33.2*117cm/34.4*13.1*46.06in

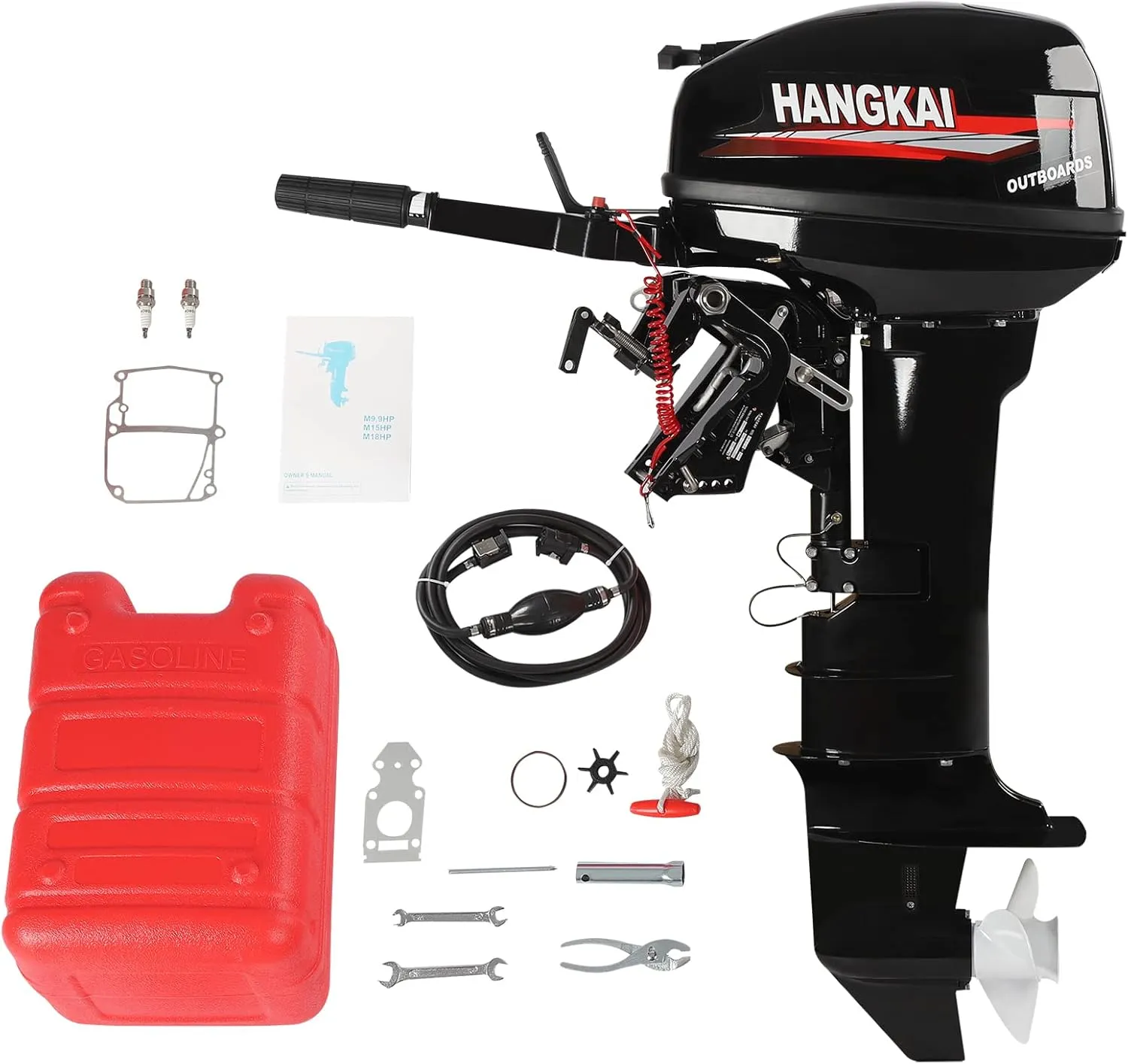

Package Included
1x Outboard Motor
1x Flameout Rope
1x Oil Pipe
1x Sealing Ring
1x Paper Pad
1x Spark Plug
1x Start Rope
1x Water Pump Impeller
1x Cotter Pin
1x Fuel Tank
1x English Manual
Other Tools
