- 【Strong Power & Excellent Load-bearing Capacity】 2-stroke 18hp engine (4500 to 5500rpm) provides strong power for you to drive fast and save a lot of time and energy. With solid aluminum alloy material and a powerful engine, the outboard engine has a maximum load of 2204 pounds to meet different needs. (The heavier the load, the slower the speed).
- 【Excellent Endurance & Excellent Heat Dissipation】 Low fuel consumption, efficient two-stroke motor, and large capacity fuel tank (6.34 gallons) provide you with a long endurance to meet the needs of short/long distance travel. Many cooling holes and water cooling systems provide excellent heat dissipation to prevent the engine from burning out after a long time of use.
- 【Flexible Steering & Easy Speed Regulation】 Forward, neutral and reverse gears, and a 360-degree steering function allow you to flexibly control the direction of the ship. Stepless speed change and constant speed cruise function make it easy for you to adjust the running speed and stable navigation at a constant speed to bring you a more comfortable user experience.
- 【Easy to Operate】 The manual start function allows you to operate easily by pulling the start rope and opening the speed switch on the handle. Its long non-slip handle(20 inches in length) is easy to grasp. The red stop button allows you to stop the engine by pressing it for a few seconds.
- 【Range of Application】This outboard motor is suitable for small ships with different materials(width less than 4.9 feet and length less than 19.7 inches), such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It is widely used in fishery, aquaculture, outdoor exploration, etc.
Gear Oil Filling Method
There is a screw on the gearbox, unscrew the screw to add gear oil. Each machine will be filled with gear oil before leaving the factory, so it does not need to be refilled when it is used for the first time. After that, add according to personal use, and check every ten hours.
Specification
Material: Aluminum Alloy
Color: Black
Model: 18HP Horsepower Long Axis
Displacement: 246CC
Gear Ratio: 2.08 (27:13)
Number of Cylinders: 2
Speed: 4500-5500RPM
Gear: F-N-R
Refueling Method: 92 Unleaded Gasoline is Recommended
Oil Tank Capacity: 24L/6.34gal
Load-bearing Capacity: 500-1000kg/1102-2204lbs
Ignition System: CDI
Cooling System: Water Cooling
Control System: Tiller Control
Start System: Manual Start
Propeller Specification: 23.5cm/9.25in (Length) * 20.3cm/8in (Diameter)
Suitable Stern Plate Height: 45cm-55cm/17.7*21.7in
Cylinder Diameter * Stroke: 56mm/2.2in*50mm/2in
Recommended Engine Oil: 2 Stroke Engine Oil
Mixing Ratio: Fuel: Oil = 50:1
Trim and Tilt System: Manual Tilt
Net Weight: 28kg/61.7lbs
Gross Weight: 30kg/66.1lbs
Package Size: 133*71*38.5cm/52.4*28*15.2in
Product Size: 87.3*33.2*117cm(34.4*13.1*46.06inch)

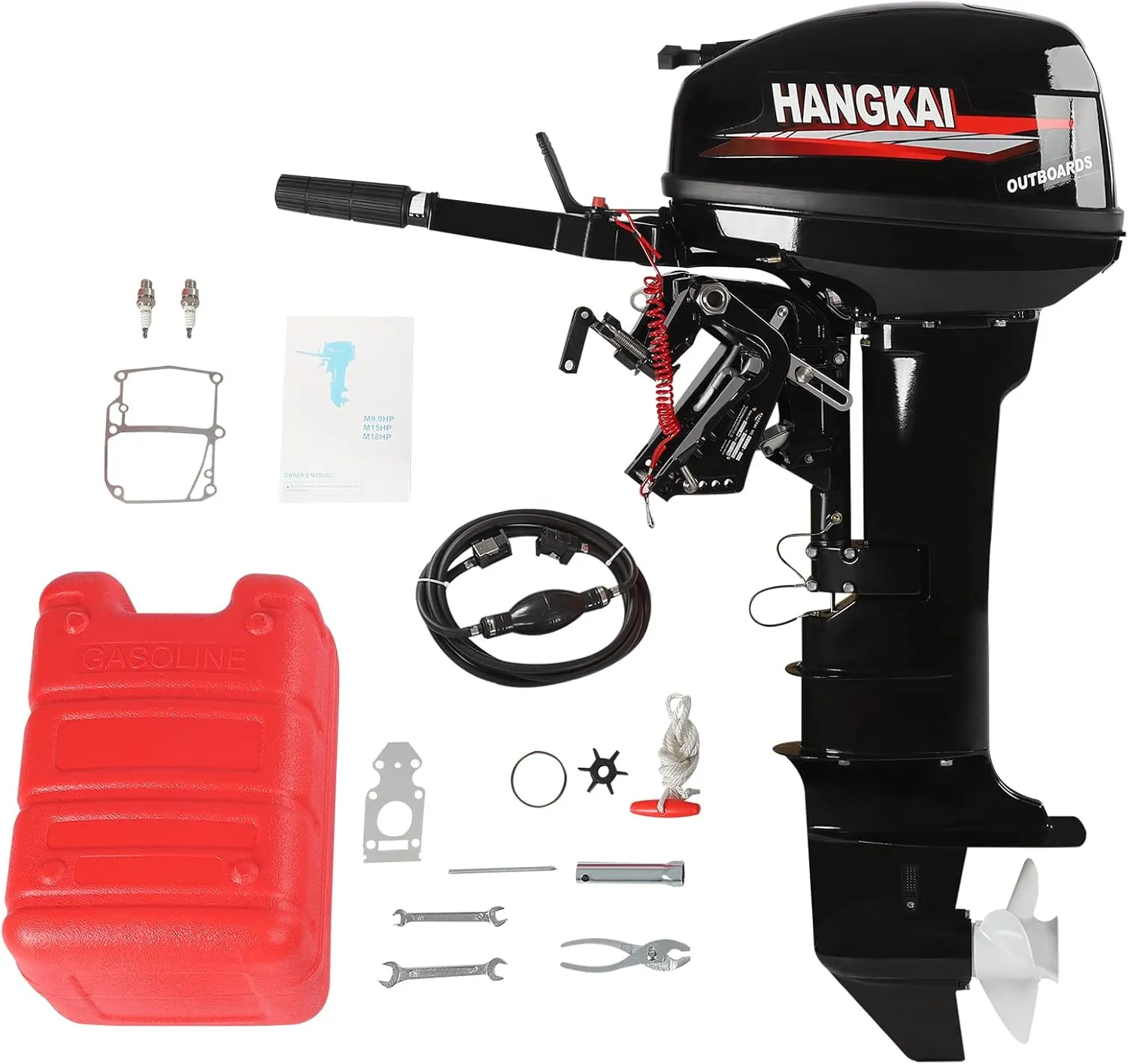

Package Included
1x Outboard Motor
1x Flameout Rope
1x Oil Pipe
1x Sealing Ring
1x Paper Pad
1x Spark Plug
1x Start Rope
1x Water Pump Impeller
1x Cotter Pin
1x Fuel Tank
1x English Manual
Other Tools
Notes
1. The two-stroke outboard must use a mixture of No. 92 gasoline and two-stroke engine oil.
2. The volume ratio of gasoline and oil during the running-in period of the new machine is 25:1.
3. After the running-in period, the volume ratio of gasoline and oil is 50:1.
