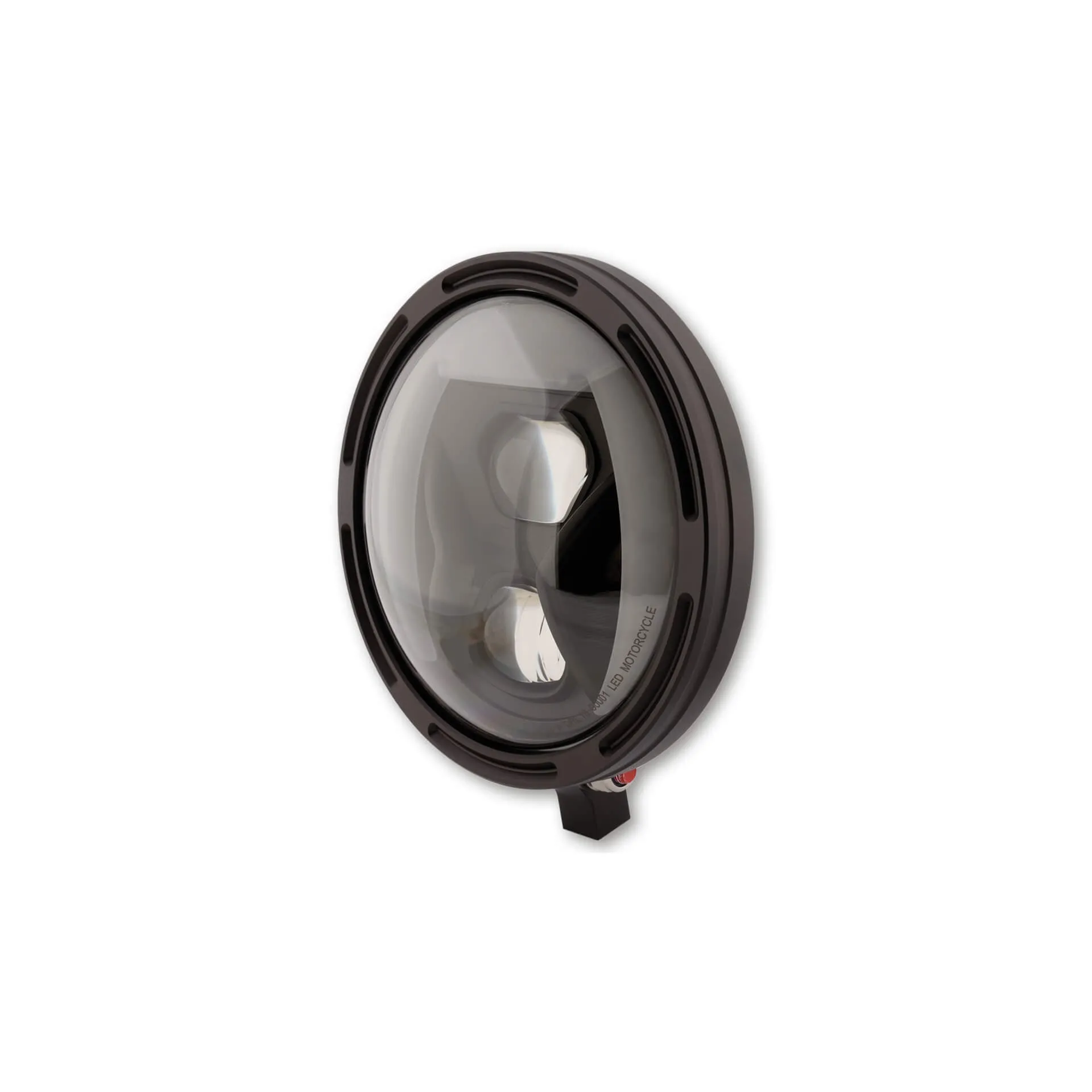

7" Type 8 Adaptive LED Headlight With R1 Frame

The Highsider Type 8 Adaptive 7″ LED Headlight is the perfect way to improve visibility at all times. The Type 8 headlight also features a unique built-in halo running light. Our R1 aluminum frame is offered as a bottom mount or side mount creating a simple and all-in-one solution. Thanks to advances made with modern LED lighting technology, forward visibility will no longer be an issue. Tilt-activated adaptive cornering lights offer visible advantages over a conventional headlight. The cornering light activates when the motorcycle is leaned over in corners to better improve road illumination. Two ellipsoidal lenses in combination with powerful LEDs turn night into day. The headlight is available with a chrome or black finish. E-approved & DOT compliant.

Dimensions:
A diameter = 7.87″ (200) mm
GA diameter = 6.65″ (169 mm) I diameter = 6.53″ (166.5 mm) T = 2.32″ (59 mm) R = 10 mm  Depth from lens fins: 3.89″ (99.10 mm)

Connections:
Power input: 3 pin connector
Red wire = low beam ( )
White wire = high beam ( )
Black wire = ground (-)

Separate wire (round connector):
Red cable = Halo  ( )

Scope of delivery: 1 headlight and R1 frame
