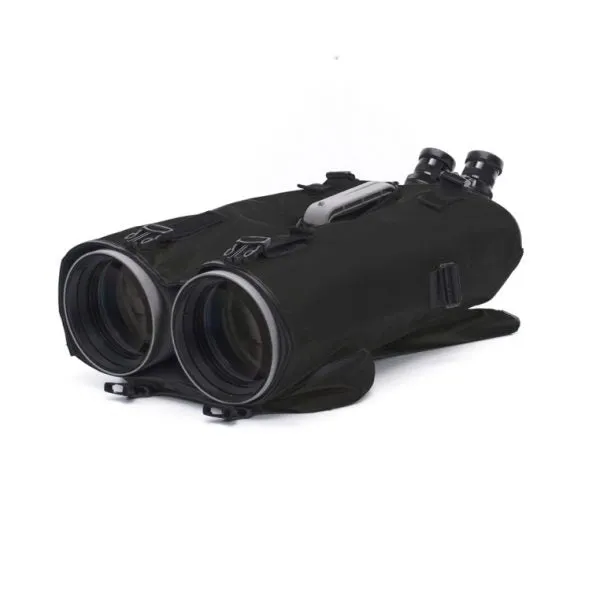

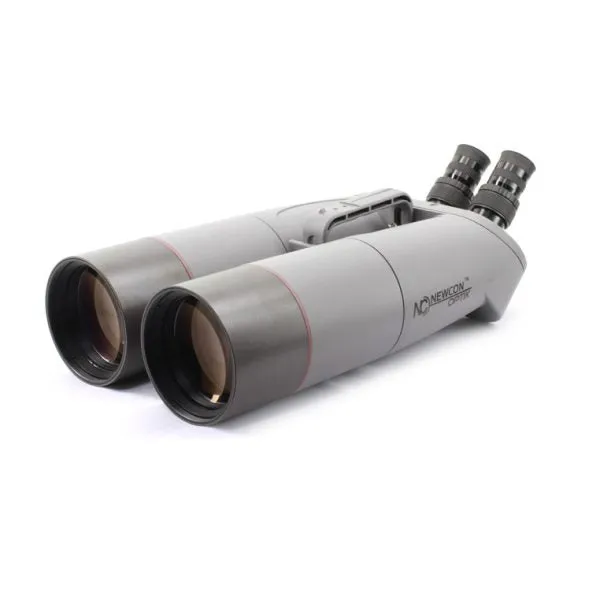

Newcon Optik BIG EYE 28x100mm ED Binocular

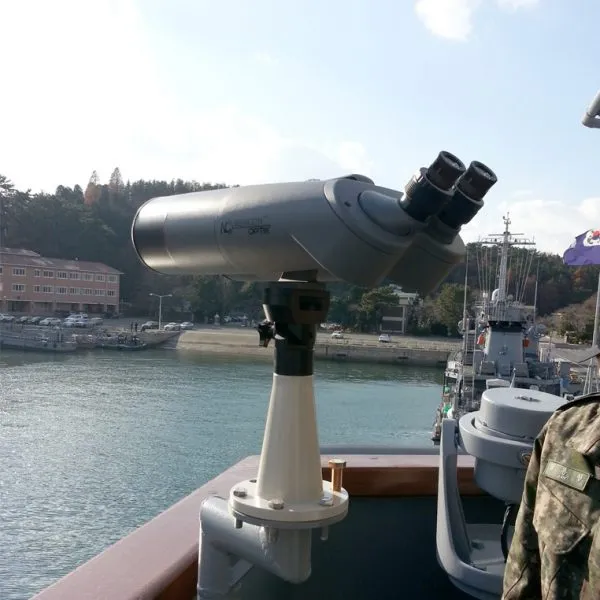

The BIG EYE 28×100 ED is designed to meet the most demanding specifications and is capable of withstanding maritime weather. It is useful as a marine binocular, a border guarding instrument, or with other applications where long-range viewing is required.

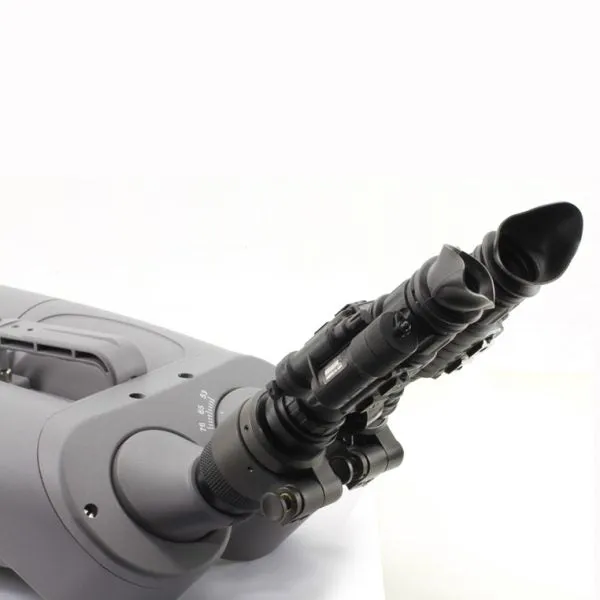

The BIG EYE 28×100 ED has massive objective lenses, BAK-6 prisms and precision ground, multi-coated optics. Optical quality is extraordinary with true edge-to-edge image clarity. Oversized, individually focusing ocular lenses are set at an angle for comfortable viewing, and have foldable eyecups. The mounted device swivels a full 360° horizontally and 135° vertically. The instrument is nitrogen-filled to prevent fogging. It can also be coupled with one or two NVS 14 series night vision monoculars for night operation.
Features
| Crystal clear optics |
| Extreme long range zoom |
| Rugged design |
| Night vision compatible |

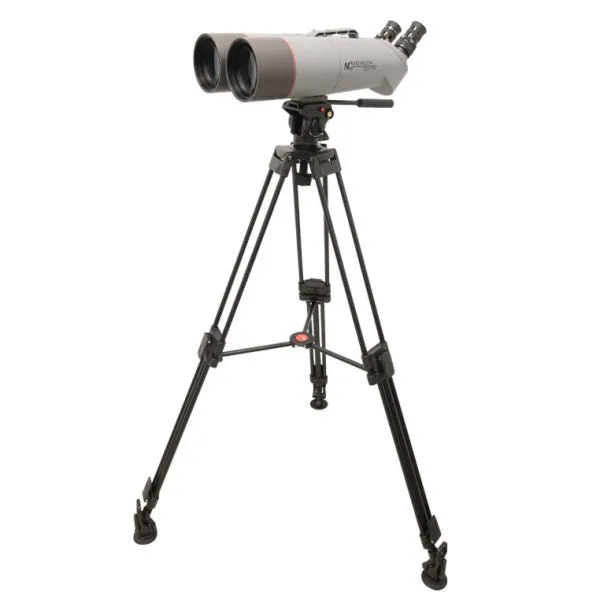

| Available with pedestal (optional) |
Specifications
- Magnification (x) - 28
- Objective lens diameter (mm) - 100
- Focus range (m) - 30 – ∞
- Exit pupil (mm) - 3.6
- Eye relief (mm) - 16
- Apparent field of view (°) - 70
- Real field of view (°) - 2.5
- Field of view @ 1000m (m) - 43.7
- Interpupillary distance (mm) - 53-76
- Relative brightness - 13
- Diopter adjustment range - (-5 to 2)
- Lens coating - FMC, ED Glass
- Weight, g - 6,800
- Dimensions (mm) - 553x270x172
- Tripod mountable - Yes
- Operating temperature range (°C) - (-35 to 50)
- Storage temperature range (°C) - (-50 to 60)
- Humidity (%) - 90
- Nitrogen purged - Yes
- Waterproofing - MIL-STD-810G
