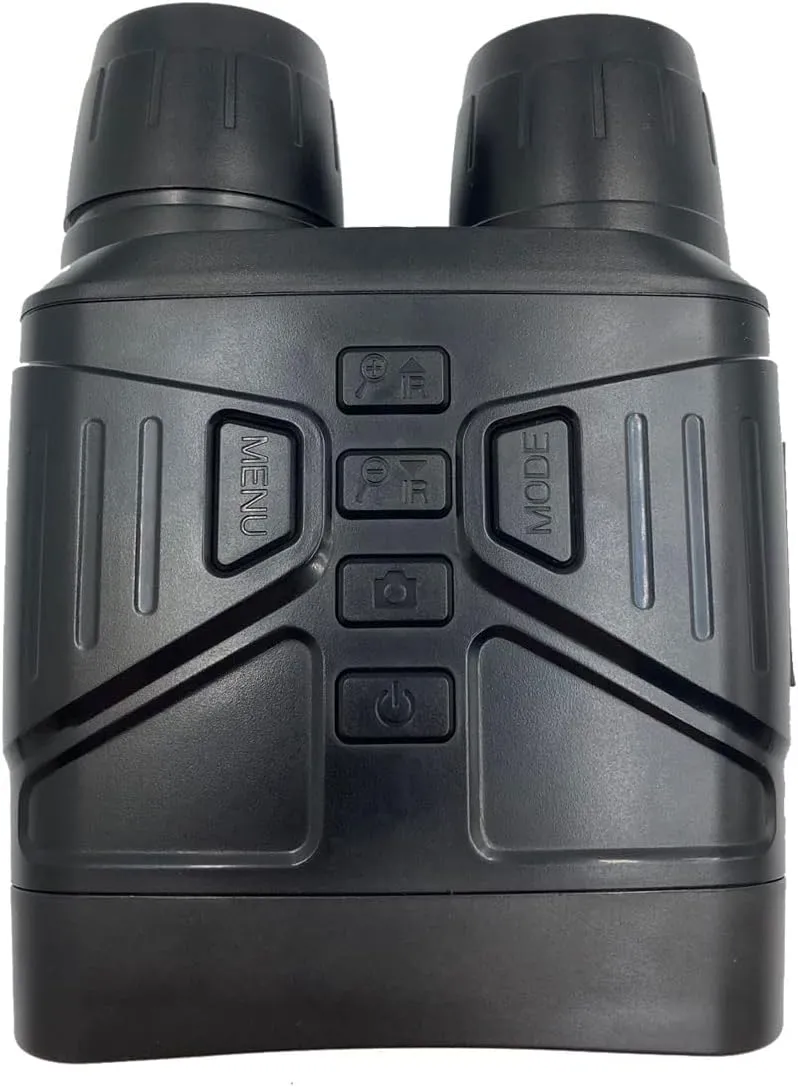

- Lens7Power ON/OFF Manual focus wheel8OK/ Shoot Button Mini SD card slot9IR Down/Zoom out or Down Button USB port10IR Up/Zoom in or Up Button Menu/ESC11Infrared filter cap Work Mode（Photo/Video/Playback）123.0 Inch Screen
- Video： Resolution1088P/1080P/720P/VGA/QVGA Loop recordingOFF/1Minute/3Minutes/5Minutes/10Minutes WDROFF/ON Motion DetectionOFF/ON Date StampOFF/ON Picture： Resolution12MP/10MP/8MP/5MP/3MP/VGA QualityFine/Normal/Economy SharpnessStrong/Normal/Soft White BalanceAuto/Daylight/Cloudy/Tungsten/Fluorescent Anti-ShakingOFF/ON
- Quick ReviewOFF/2S/5S Date StampOFF/Date/Date Time ISOAuto/100/200/400/800 Settings： Date/TimeYY/MM/DD 00:00:00 Auto Power OffOFF/1minute/2minutes/3minutes/5minutes/10minutes LanguageChinese/English/Japan/Italy/France/Germany/Russia/Spain/Portugal Frequency50HZ/60HZ Exposure 1/3 0.0 -1/3 -2/3 -1.0 -4/3 -5/3 -2.0 Screen SaveOFF/1minute/3minutes/5minutes/10minutes FormatSD card Default SettingCancel/OK Version2021-03-03
- Costing Storage Media: MicroSD Card, Max Up to 32GB (not included)
Parameters Photo Resolution: 12MP/10MP/8MP/5MP/3MP/VGA Video Size: 1088P/1080P/720P/VGA/QVGA Aperture: F 1.2 f=25mm Lens Angle: FOV=10°, diameter: 25mm Display Screen: Inner 3.0”inch (800*480)TFT LCD Digital Zoom: 5X Storage Media: Micro SD card，Max up to 32GB Viewing Distance in 100% darkness: 150-200M Viewing Distance in weak light or day time: 3M~Infinity IR LED: 3W，850nm，7 levels USB Port: Micro USB 2.0 Power Source : Built-in 18500 battery Operating Temperature：-20℃ to 60℃ Storage Temperature：-30℃ to 70℃ Dimension: approx. 155*120*60mm Net weight: approx.300g Quick Start 1： Insert Micro SD card（up to 32GB），Long press key to 3-5s，the device will power on，After power on，adjust the object clearly through the focus wheel，and press key， manual take photo or video record，and long press key to shutdown 2： press key， setting work mode（photo， video，playback），on playback mode， press key to playback， and press key again，exit playback 3： press key，go to menu setting parameters，press or up or down key to choice，and press key to confirm，after settings，press key again to ESC and exit menu 4： short press key to open IR LED， press it again to add one level until 7 Levels (Max)， short press key to reduce one level until 0 level (Mini) and close IR LED 5： Long press key，Zoom in，Max 5X， long press key，Zoom out，Mini 0X， for the objects of long range or nearly range，Zoom in or out first ,and adjust the clearly object through the focus wheel，press key to take photo or video record and save SD card Note： Turn on IR LED status，can not zoom in or out，need to close IR LED first 6： Long press key 3-5s to shutdown，take out SD card after shutdown，read the data files with card reader or connect USB cable on PC 7： Charging，connect it to DC 5V adapter or Power Bank with USB cable
