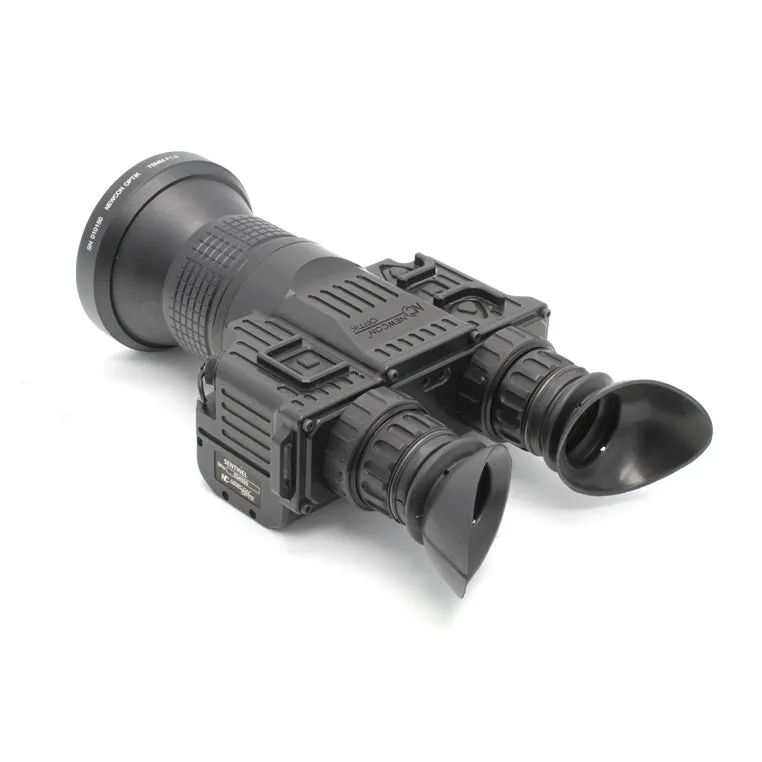

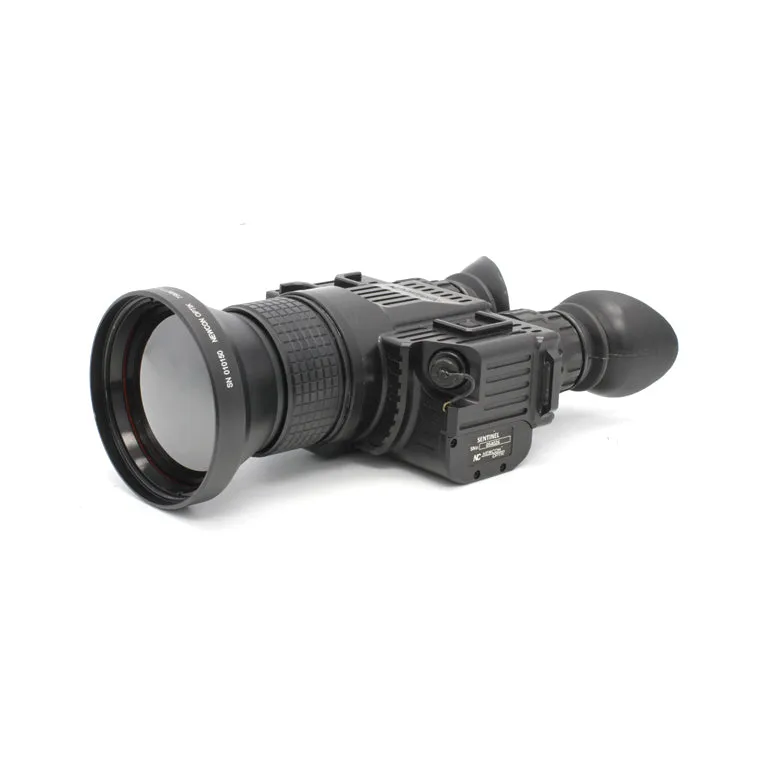

Newcon Optik Sentinel 640 Thermal Imaging Binocular
The SENTINEL (640) utilizes a large diameter Germanium lens to extend its observation range beyond 2,500m. The SENTINEL (640) is an advanced thermal imaging binocular with a wide variety of tactical, law enforcement, border security and special forces applications. The SENTINEL (640) utilizes a high resolution uncooled thermal sensor to perceive differences in the thermal signature of objects within the field of view.
This device can detect objects at remote distances 24 hours a day, through smoke, fog or camouflage. This device does not produce any audible sounds while in operation.
Features
| Ergonomic design |
| High-resolution uncooled thermal sensor |
| Superb image clarity |
| 640 resolution variant |
| Simple to operate |
Specifications
Sensor | |
Resolution (pixels) | 640×512 |
Operating wavelength (µ) | 7.5-13.5 |
Sensitivity (mK @F1.0) | <50 |
Video Output | PAL or NTSC |
| DRI range (m): Human Tank |
2,500/625/313 6,800/1,700/850 |
Optics | |
Objective focal length (mm) | 75 |
Field of view (°) | 8×7 |
Eye relief (mm) | 25 |
Dioptric correction | -6 to 2 |
Zoom | 2x, 4x, (8x optional) |
Mechanics, Electronics & Environmental | |
Dimensions (mm) | 208x89x146 |
Weight without batteries (g) | 1030 |
Battery type | 6x AA |
Battery life (hours) | 8 |
Operating Temperature (°C) | -40 to 50 |
